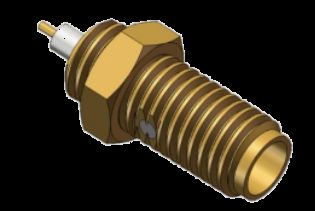

SSMA / Mini SMA Female Jack Bulkhead RF Coaxial Microstrip Connector with Screw Mount Up to 18GHz
|
|
Подробная информация о продукте:
Оплата и доставка Условия:
|
Подробное описание продукта
| Название продукта: | Прямой микрополосковой разъем SSMA SSMA | Модель: | SSMA-KYD21 |
|---|---|---|---|
| Частотный диапазон: | 00,3 МГц-18 ГГц | Импеданс: | 50 Ом |
| Оцененное напряжение: | 250 В. | DWV: | 750 В |
| Устойчивость к изоляции: | ≥5000 мОм | Центральный дирижер: | Сплав меди, покрытый золотом |
| Внешний дирижер: | Сплав меди, покрытый золотом | Метод держателя: | Винт переборка |
| Изоляторы: | PTFE | Образцы: | Доступно, на складе |
| Выделить: | SSMA female jack RF connector,Mini SMA bulkhead coaxial connector,Screw mount microstrip connector 18GHz |
||
Straight SSMA / Mini SMA Female RF Coaxial Connector Bulkhead Mount Up to 18GHz
Product Specifications
| Items | Value |
|---|---|
| Product Name | Straight SSMA Female Bulkhead RF Coaxial Connector |
| Model |
SSMA-KYD21
|
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | Bulkhead Screw |
| Insulators | PTFE |
Product Overview
Compact Size with Wide Frequency Bandwidth The SSMA series connectors are designed to be compact, approximately 70% the size of traditional SMA connectors, making them ideal for applications where space is limited. Despite their smaller size, these connectors support a wide frequency bandwidth, ensuring robust performance across various frequencies.
Frequency Operation up to 30GHz Capable of operating at frequencies up to 30GHz, SSMA connectors are suitable for a wide range of high-frequency applications. This high-frequency operation allows for versatile use in advanced communication systems and RF applications.
SSMA RF Coaxial Connectors Interface Dimensions
SSMA / Mini SMA Bulkhead RF Coaxial Microstrip Connector Dimensions
Outline dimensions for the SSMA-KYD21 (Unit: mm).
Other Model SSMA Female Bulkhead RF Coaxial Microstrip Connectors:
Applications
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Packaging & Shipping
Packaging: Each SSMA bulkhead microstrip connector is carefully packaged in protective cartons to ensure safe transit. Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.Note: For other similar SSMA bulkhead microstrip models, please contact us for our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
