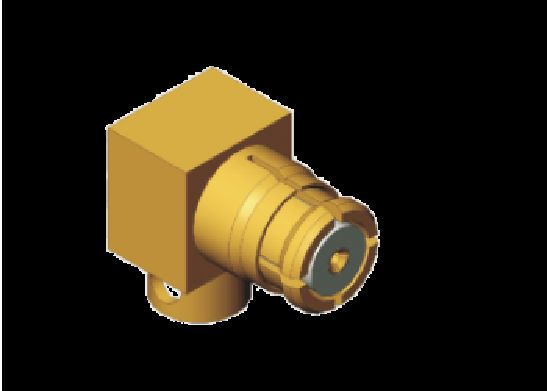

Right Angle SMP Female Cable Connector Straight Jack SMP Cable Frequency Up To 18GHz
|
Подробная информация о продукте:
Оплата и доставка Условия:
|
Подробное описание продукта
| Название продукта: | SMP прямоугольный разъем-розетка | Модель: | СМП-KW506 |
|---|---|---|---|
| Частотный диапазон: | 00,3 МГц-18 ГГц | Жилье: | Медный сплав, позолота |
| Контакты: | Медный сплав, золотопокрытие | Изолятор: | PTFE |
| Устойчивость к изоляции: | > 5000 МΩ | DWV: | 500 В. |
| Нанесение: | 50 Ом | Температура: | -55℃～+125℃ |
| В наличии: | >500 шт. | ||
| Выделить: | Right Angle SMP female connector,SMP cable connector 18GHz,Straight jack SMP RF connector |
||
Product Description:
The SMP connector is a push-on subminiature RF coaxial connector designed for high-frequency applications up to 40 GHz. Renowned for its compact size and reliable performance, it is ideal for board-to-board connections in various electronic devices, systems, communications, satcom (satellite communication), radar, and other related fields. It saves significant mounting space, enabling high-density board connections. The male plug is available in three configurations: full detent, limited detent (also referred to as semi-detent or half-detent), and smooth bore (including the catcher's mitt type).
Based on specific application requirements, users can select the male plug with the appropriate configuration. When frequency interruption is not a concern, the full detent version is recommended. It offers the maximum connection retention force, as well as superior vibration and impact resistance, making it commonly used for cable connections.
For applications requiring multiple mating cycles, the limited detent (also called semi-detent or half-detent) is suitable. Derived from the smooth bore structure, it provides medium retention force and is widely utilized in PCB assemblies and blind-mating connections.
When assembling a large number of SMP board-to-board connectors, the smooth bore configuration is preferred. It features equal engagement and disengagement forces, while accommodating axial and radial misalignment, making it a common choice for blind-mating applications.
|
Electrical Characteristics
|
||
|
Impedance
|
50Ω
|
|
|
Frequency Range
|
DC~40GHz
|
|
|
Rated Voltage
|
170VRMS
|
|
|
Dielectrics Voltage-resistance
|
500VRMS
|
|
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
Outer conductor
|
Normal≤2.5mΩ
|
|
Center conductor
|
Normal≤6mΩ
|
|
|
VSWR
|
≤1.3
|
|
| VSWR | DC~18GHz | 18GHz~26.5GHz | 26.5~40GHz | |
| Straight | ≤1.25 | ≤1.3 | ≤1.4 | |
| Right Angle | ≤1.3 | |||
| Adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| Others | ≤1.3 |
The outline demension of SMP Jack Mating Cable CXN3506, Model: SMP-KW506 Up to 18GHz
SMP Cable Assemblies for your reference:
Cable Model:CXN 3506
Cable OD: 2.3mm
Cable Color : Grey
Frequency:up to 18GHz
We also have straight SMP Cable, SMP Model:SMP-K506 Up to 18GHz
Cable Model: CXN 3506
Cable OD: 2.3mm
Cable Color: Grey
More products, please contact us freely for the SMP Cable Connectors catalog sales3@xa-elite.com.cn
Applications:
Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.
Customization:
Product Customization Services for Different Length SMP Connectors are available:
Brand Name: ELT
MOQ: 200 pcs
Price: Depending on the quantity
Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.
We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, TMA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler.
Packing and Shipping:
Packaging for SMP Straight Connectors:
1 Piece/ small plastic bag
10 Pieces/ larger plastic bag
100 Pieces/ carton box
The SMP Straight Connectors comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.
For shipping, the SMP Connectors is placed in caron. We will supply the tracking No after shipping.
